Kingston Value DDR4 2400 MHz

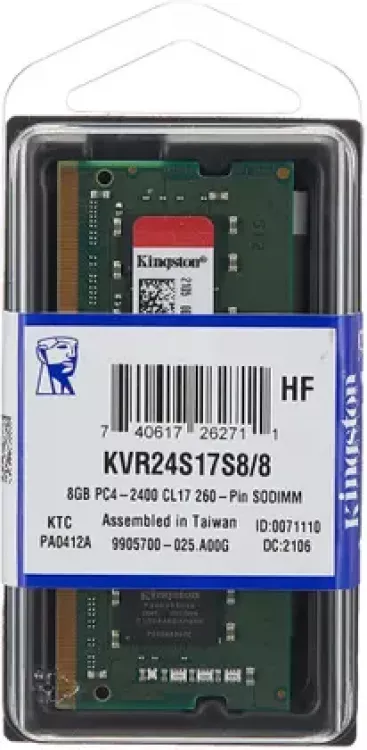

KVR24S17S8/8
8GB 1Rx8 1G x 64-Bit PC4-2400
CL17 260-Pin SODIMM

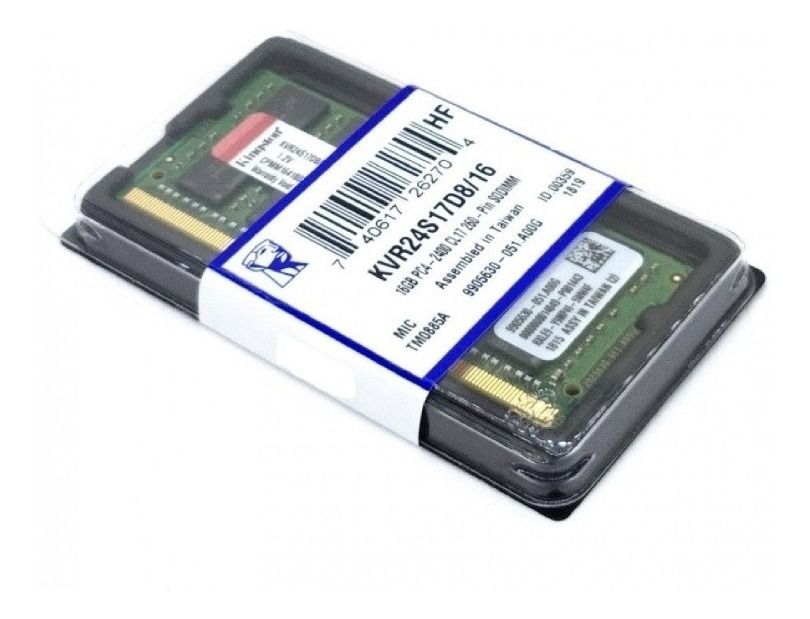

KVR24S17D8/16
16GB 2Rx8 2G x 64-Bit PC4-2400
CL17 260-Pin SODIMM

SPECIFICATIONS:
CL(IDD) 17 cycles
Row Cycle Time (tRCmin) 45.75ns(min.)
Refresh to Active/Refresh 350ns(min.)
Command Time (tRFCmin) 32ns(min.)
Row Active Time (tRASmin) TBD W*
Maximum Operating Power 94 V - 0
UL Rating 0
Operating Temperature de 0°C à +85°C
Storage Temperature de -55°C à +100°C

• Power Supply: VDD=1.2V Typical
• VDDQ = 1.2V Typical
• VPP - 2.5V Typical
• VDDSPD=2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for
data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Single-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 16 internal banks; 4 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8
via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.18” (30.00mm)
• RoHS Compliant and Halogen-Free
